Sheet metal laser cutting job work in Ahmedabad
Send a drawing, get accurate parts. We cut mild steel, stainless steel, aluminium, brass, copper and GI sheet to your DXF on a 1500 × 3000 mm fiber laser in Odhav, from one prototype to production batches.
What we cut
Our CNC fiber laser takes a full 5 × 10 ft sheet (1500 × 3000 mm) and cuts any flat profile you can draw: brackets, base plates, gussets, flanges, machine guards, enclosure panels, gland plates, jigs and fixtures, blanks for bending, and decorative panels. Kerf is about 0.2 mm, so small holes, narrow slots and fine lettering come out clean.
| Material | Thickness we cut | Assist gas | Edge |
|---|---|---|---|
| Mild steel (MS, CRCA, HR) | 0.8 – 16 mm | Nitrogen to 3 mm, oxygen above | Square, dross-free, paint-ready |
| Stainless steel 202 / 304 / 316 | 0.5 – 8 mm | Nitrogen | Bright silver, no oxide |
| Aluminium | 0.5 – 6 mm | Nitrogen | Clean, light burr on thick sheet |
| Galvanised (GI / GP) | 0.5 – 3 mm | Nitrogen | Zinc face intact |
| Brass | 0.5 – 4 mm | Nitrogen | Clean, fine detail to 1 mm |
| Copper | 0.5 – 3 mm | Nitrogen | Clean |
Thicker plate than this is possible through a partner plasma or waterjet shop. Tell us the job and we will route it.
Accuracy and edge quality
- Cut profiles typically within ±0.1 mm of the drawing.
- Square, dross-free edges on MS. No grinding before welding or painting.
- Nitrogen cutting on stainless and aluminium leaves a bright edge with no oxide, so parts go straight to brushing, polishing or assembly.

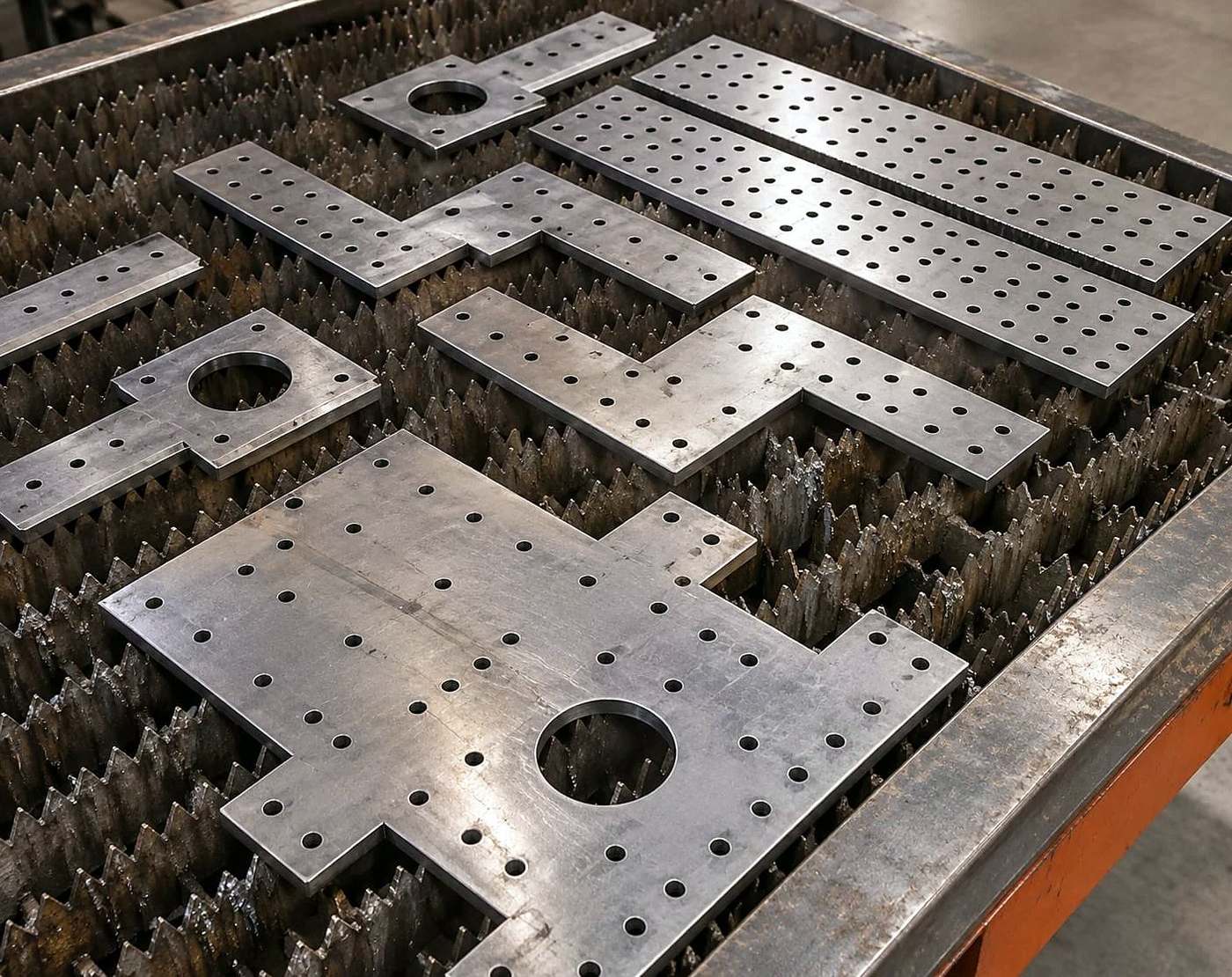

- Holes cut in the same pass as the outline, so hole positions are as accurate as the profile. No secondary drilling for clearance holes.

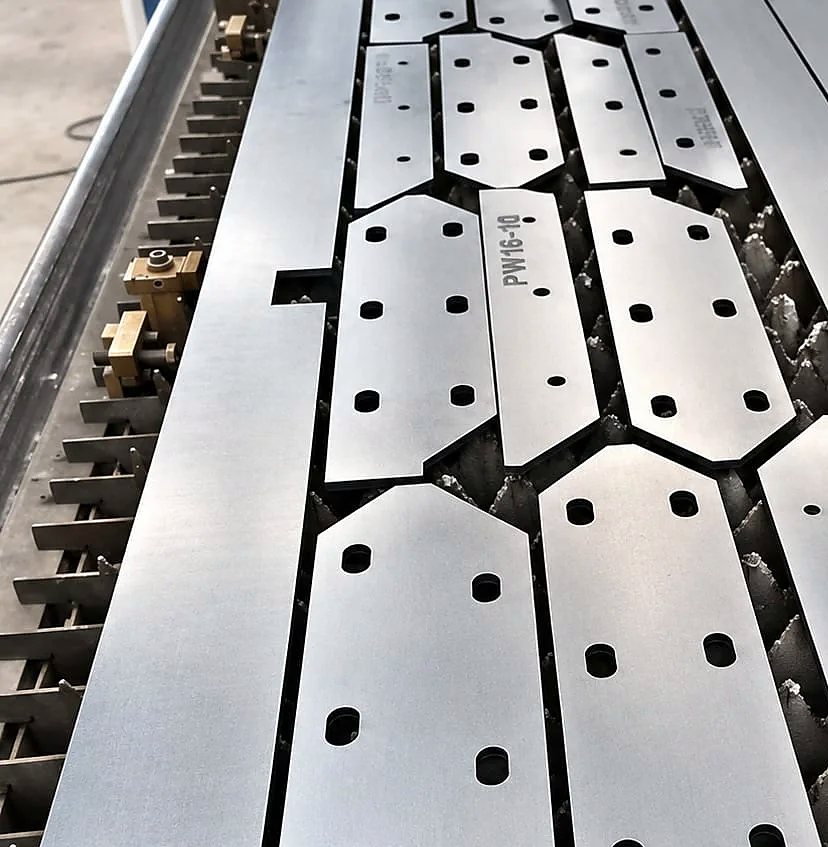

Nesting saves you material
We nest your parts on the sheet to use the least metal. A batch of 400 hinge plates fits on one sheet with the skeleton kept small, and the remnant is yours if you supplied the sheet. If we supply material, you pay only for what the job uses.
How job work runs with us
- Send the drawing on WhatsApp. DXF or DWG is best. PDF, STEP, AI and SVG also work, and we draw from a clear sketch with sizes.
- Quote within the day. Price and lead time, with a note if any feature is too thin to cut cleanly.
- Sample on request. For a new part we cut one piece first so you can check fit.
- Batch, deburr, deliver. Pickup from Odhav, delivery across Ahmedabad, or transport outstation.
Who uses our laser cutting
Electrical panel builders in Odhav and Vatva GIDC for enclosure doors, gland plates and backplates. Textile and packaging machinery makers for frames, side covers and guards. Elevator companies for COP and LOP faceplates. Pump makers for flanges and impeller blanks. Fabricators who need accurate blanks faster than plasma or shearing can give them. See lift, pump and electrical parts and our materials guide.
WhatsApp a DXF, PDF, photo or sketch. We reply with price and lead time the same working day.
Frequently asked
What is the minimum order for laser cutting job work?
There is none. We cut single prototype pieces as readily as batches of thousands. Small jobs are priced on cutting time plus material.
Do you cut customer-supplied material?
Yes. Bring your own MS, SS or aluminium sheet and we cut only. We also stock common sheets if you would rather buy from us.
How fast is the turnaround?
Prototype pieces in 1 to 2 days. Repeat batches are scheduled to your delivery date, and urgent jobs can often be cut the same day.
What file format should I send?
DXF or DWG at 1:1 scale in millimetres. PDF drawings with dimensions work too. If you only have a sketch or photo, we will draw the cut file and show it to you before cutting.
